Heavy Duty Single Bowl Drainboard Sink – 18 Gauge Stainless Steel Single Sink with Drainboard for High-Volume Use
Heavy Duty Single Bowl Drainboard Sink – 18 Gauge Stainless Steel Single Sink with Drainboard for High-Volume Use
Model
SW1250
Item specifics
Attribute
With drainage board
Material
Stainless steel/304/316
Scene
Home kitchen, cafe and light commercial, outdoor washing area, utility room
Accessories
Optional Choice
Interior finish
Brush
Color
Natural stainless steel finish
Service
OEM+ODM Accept
MOQ
20 pcs for samples / 500 pcs for bulk production
Packing by
6 pcs per export carton (individually wrapped)
Review
Description
SW1250 · Stainless Steel Top Mount Series

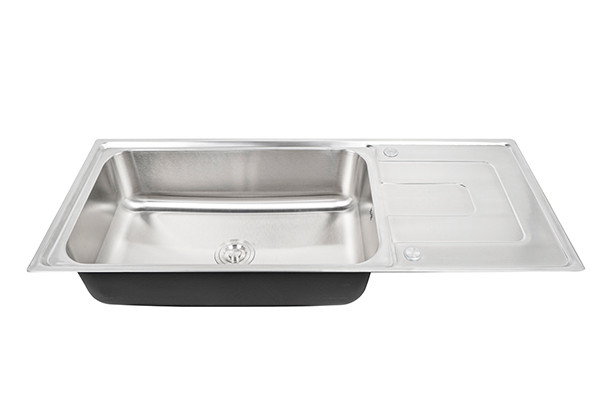

Stainless Steel Single Bowl Sink with Drainboard

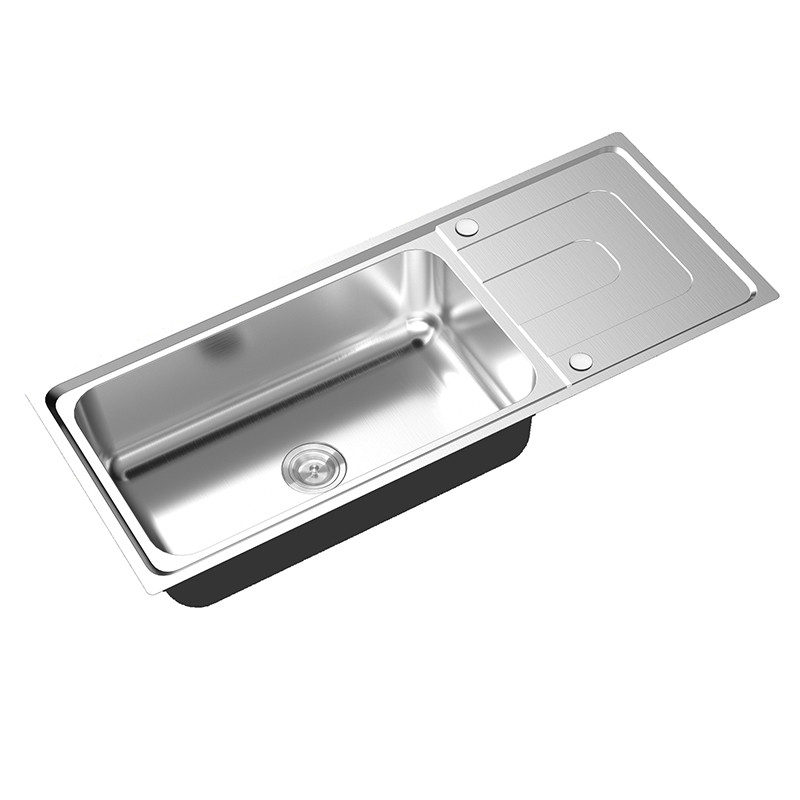

The SW1250 is a 1200 × 500 mm one-piece deep-drawn stainless steel single bowl sink with drainboard: a terraced drainer on one side, one extra-large sloped bowl on the other, and a body that can be installed drainer-left or drainer-right. It drops into a standard top-mount cutout, and an optional leg kit turns the same sink into a freestanding wash station.
1200 × 500 mm overall, 1 bowl
Bowl and drainer pressed as one piece, no welded joint

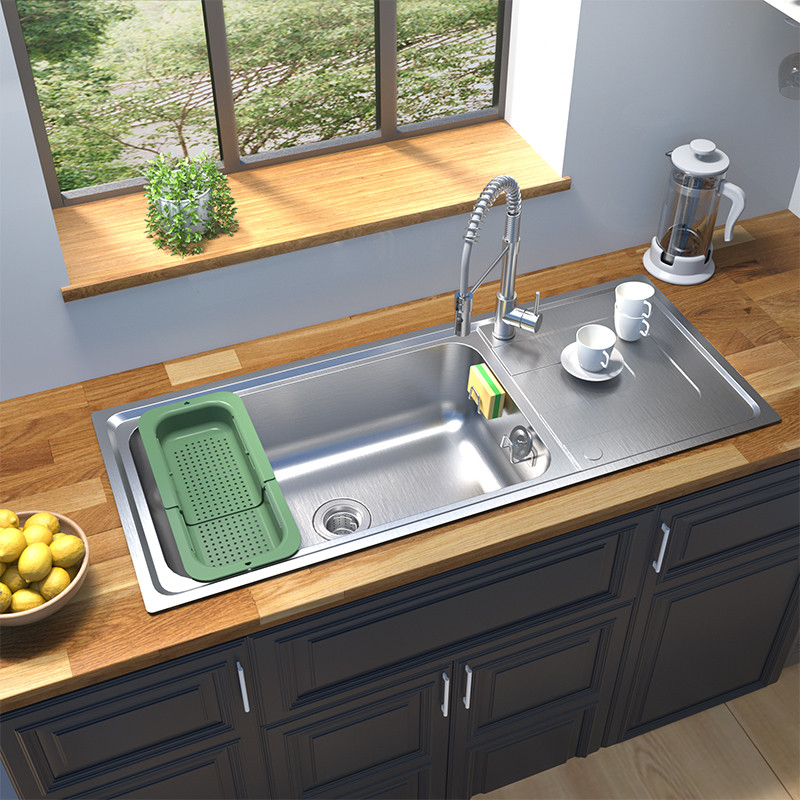

SW1250 in a working kitchen: wash in the bowl, drain on the terraced board, counter stays dry.
MaterialStainless steel 304
Configuration1 bowl + terraced drainer
Overall size1200 × 500 mm
InstallationDrop-in top mount
FinishSatin, polish or electropolished
MOQ20 pcs sample / 500 pcs bulk
Why the SW1250 Works Where a Plain Sink Does Not
Six features decide whether a drainboard sink still looks and works the same after two years of daily service. Each card below states the feature, what it actually changes in use, and what that saves you.
One-Piece Deep Drawn Body
Feature Bowl and drainer are pressed from a single sheet in one draw, so there is no welded seam along the joint between them.
Advantage Water, grease and detergent have no joint to creep into, and there is no filler or caulk line to fail.
Benefit No seam rust and no re-sealing call-outs. The integrated drainboard stays hygienic on the underside as well as the top, which is what a hygiene inspection actually checks.

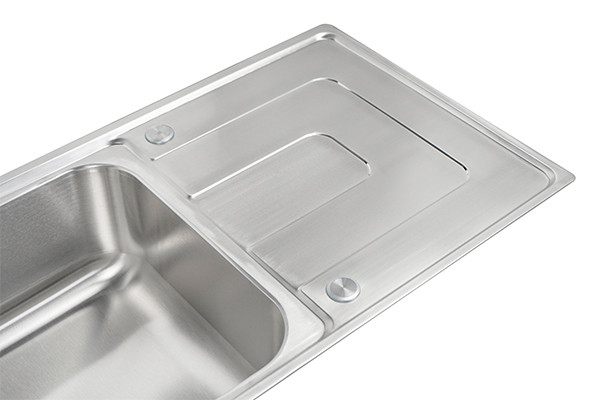

Terraced Drainer Board
Feature The drainer is stepped into tiers with raised ribs instead of being one flat plate.
Advantage Run-off is guided step by step back towards the bowl, and plates sit above the surface instead of lying in a puddle.
Benefit The counter stays dry between washes and staff stop re-wiping the deck after every tray. On a busy pass that is the difference between one sink doing the work of two.
Extra-Large Sloped Bowl with Oversize Outlet
Feature The bowl base is pressed with a fall towards a φ110 mm outlet, available as φ160 mm on request.
Advantage Water leaves faster than a standard tap can put it in, even with the bowl full of pots.
Benefit No standing water at close of business, less scrubbing at the base radius, and a quicker turn between covers.
Reversible Body, Drainer Left or Right
Feature The tap hole is drilled after the layout is confirmed, so the body can be installed bowl-left with drainer-right, or drainer-left with bowl-right.
Advantage One reference covers both the left-hand and right-hand working preference in a market.
Benefit Fewer variants in stock and fewer picking errors, while still filling a mixed container for several customers.
Drop-In Fit, or Bolt On Legs
Feature Standard drop-in rim for a cutout in any countertop. An optional leg kit turns the same sink into a freestanding unit.
Advantage A drop-in stainless steel sink with drainboard needs no underside framing, and the leg kit adds a movable wash station without a second product line.
Benefit One purchase covers both a fixed kitchen fit-out and an outdoor or temporary wash point, which is exactly the mix distributors in warm-climate markets are asked for.
Sound Pad and Rolled Rim
Feature A damping pad is bonded to the back of the bowl, with a second pad available for the drainer. The rim is rolled rather than cut flat.
Advantage The pad takes the drum out of running water, and the rolled edge stiffens a long 1200 mm panel.
Benefit Quieter in an open kitchen, and the sink beds down flat on the countertop instead of flexing when a full pot lands on the drainer.
Dimensions, Drainage Layout and Cutout Planning
The stainless steel single sink with drainboard measures 1200 mm from right to left and 500 mm from front to back. The plan below shows how the length is shared between the bowl and the terraced drainer, where the outlet sits, and which way the water runs.

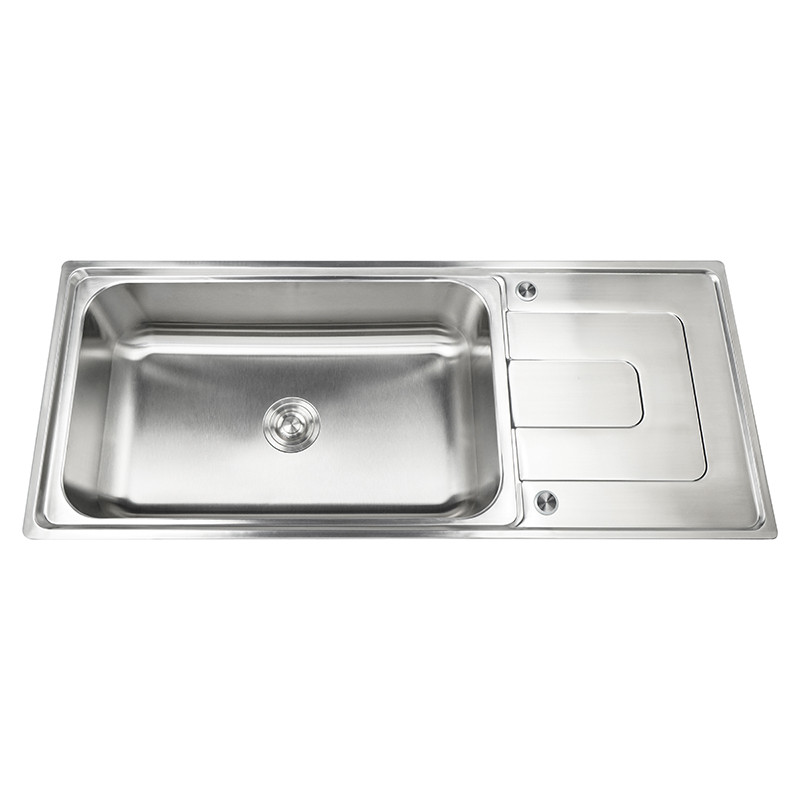

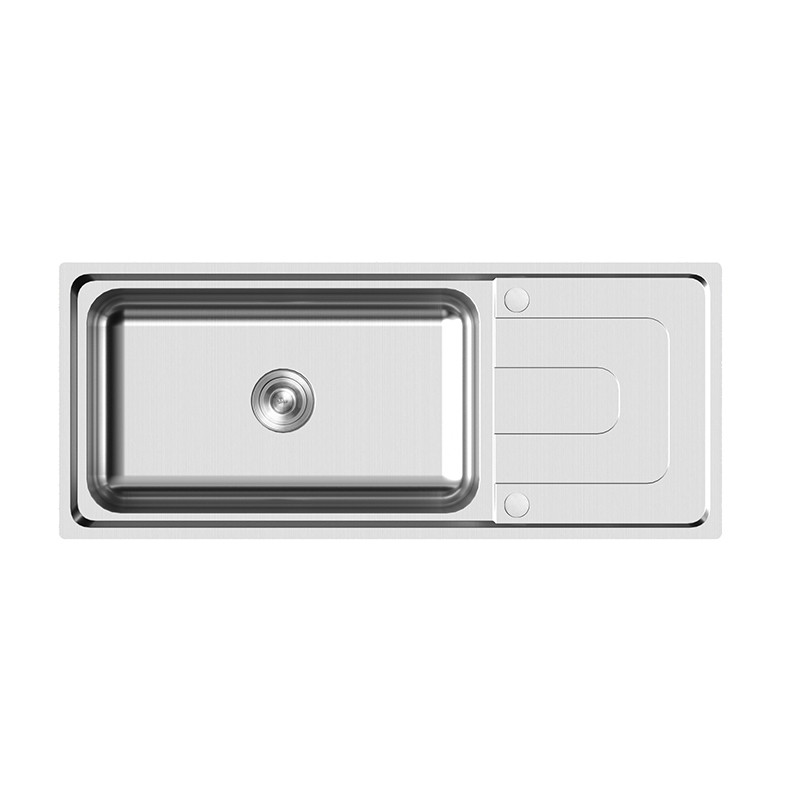

Plan view of the SW1250: bowl and terraced drainer share one pressed body; the drainer can be specified left or right.
Overall size1200 × 500 mmRight to left × front to back
Bowl1 bowl, sloped baseFall pressed towards the outlet
Outletφ110 mmφ160 mm available on request
Tap hole1 holeDrilled per confirmed layout
Plan: bowl and terraced drainer in one bodyFront elevation: rim height and drainer lineSide view: depth and bowl profile
Cutout and bowl opening: we confirm the cutout and the bowl opening against the production drawing on every order. Send your countertop drawing and we return a marked-up cutout sheet with the tap hole position and the drainer side you specified, usually within one working day.
Full Specification of the SW1250 Sink
Product data
Model
SW1250
Sink type
One-piece deep-drawn single bowl sink with dual drainers
Material
Stainless steel 304
Bowl count
1 bowl
Colour
Natural stainless steel finish
Surface finish
Satin (standard); polish or electropolished on request
Overall size
1200 mm right to left × 500 mm front to back
Drainer
Terraced board, stepped ribs, falls back to the bowl
Rim and corners
Rolled edge, smooth rounded inner corners
Installation
Drop-in top mount; leg kit available for freestanding use
Drain hole
φ110 mm standard, φ160 mm optional
Tap hole
1 hole, drilled to the confirmed layout
Soap dispenser hole
None
Sound deadening
Pad on the back of the bowl; optional pad for the drainer
Ordering and service
MOQ
20 pcs for samples; 500 pcs for bulk production
Lead time
30 to 40 days after deposit received
Trade terms
EXW factory; FOB Shenzhen or Guangzhou; DDP destination port
OEM / ODM
Accepted; custom logo and specification supported
Waste kit
Optional: waste head only, or full set with waste pipe
Packing
Individual export carton, 6 pcs per carton
40'HQ loading
3204 pcs / 534 cartons
20'GP loading
1272 pcs / 212 cartons
Mixed loading
Supported alongside other items in the same container
Samples
Available; sample and freight cost borne by the buyer
Warranty
24 months on manufacturing defects, non-transferable
Documents
MTC and RoHS report on request
Faucet is not included. Specify the outlet size, the drainer side and the waste kit when you order, so the tap hole and outlet are prepared in the first production run.
Packing and Container Planning
φ110 / φ160 mm waste options: head only, or the complete set with pipe.
How a 1200 mm sink ships without damage
Each sink is wrapped individually and packs six to an export carton, so the rim and the drainer edge are never load-bearing. Cartons are stackable and labelled with model, drainer side and outlet size, which keeps a mixed order sortable at the destination warehouse.
40'HQ3204 pcs · 534 cartons
20'GP1272 pcs · 212 cartons
Mixed loadingOther models can share the container
Packing unit6 pcs per export carton
Tell us the destination port and we return a loading plan with the exact carton count for your quantity.
Where This Single Bowl Drainboard Sink Is Used
The drainer is the part that earns its space: a single sink with drainboard handles washing and drying in one footprint, so it fits rooms where a separate drying rack has nowhere to go.

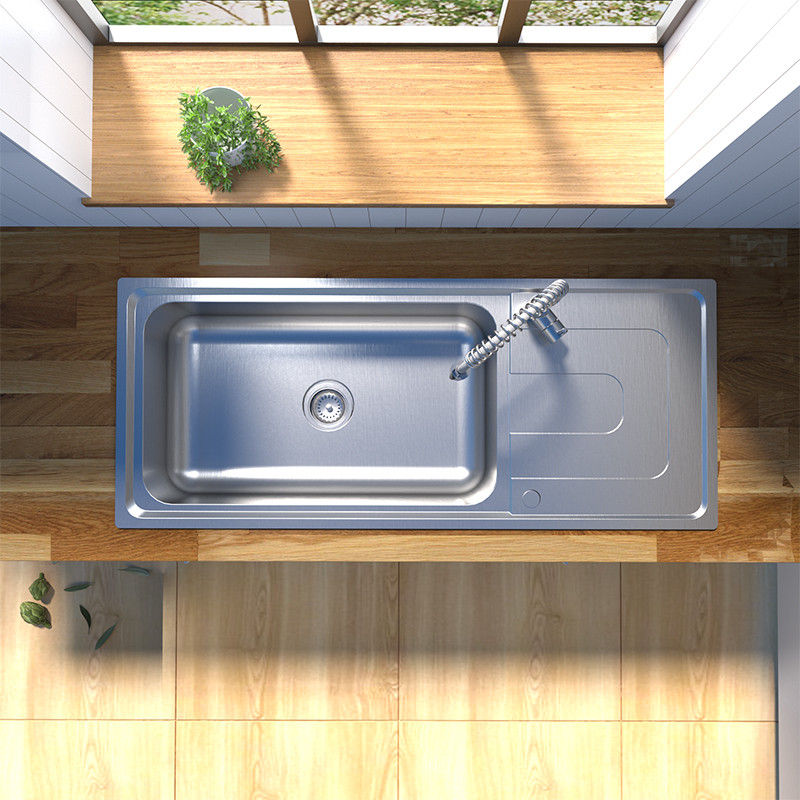

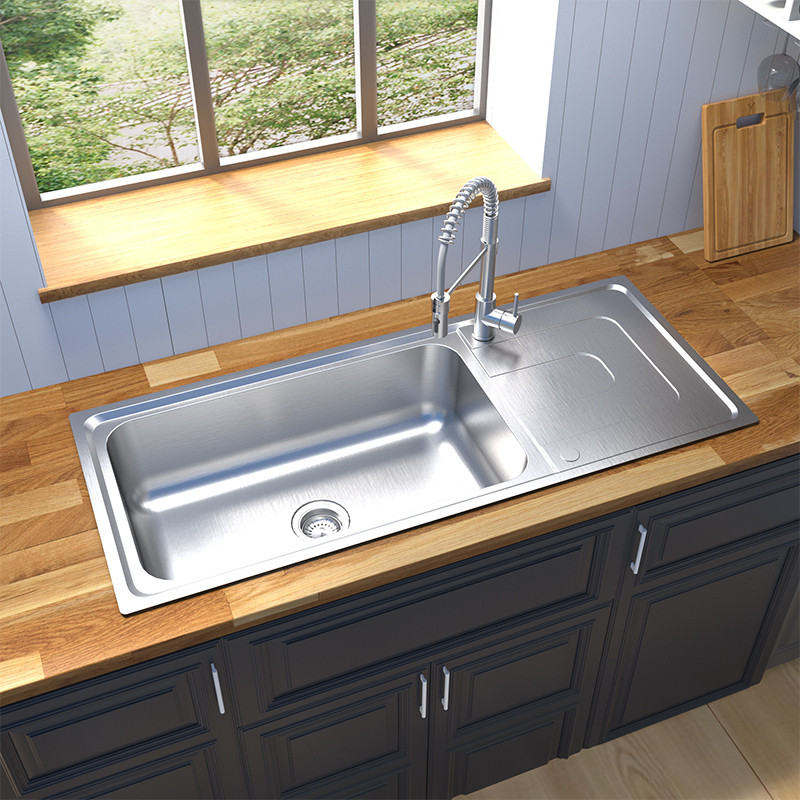

Home kitchen: wash on the left, drain on the right, no rack on the worktop.Outdoor and backyard wash points: leg kit fitted, hosed down and left to drain.
Home kitchens
One bowl wide enough for a roasting tray, plus a drainer for the daily wash-up, in the same run of worktop.
Café and light commercial
Glassware and small ware drain beside the bowl instead of on a cloth, which keeps the pass clear during service.
Outdoor and backyard washing
Fitted on legs, the same sink becomes a movable wash station for gardens, terraces and utility yards.
Utility and laundry rooms
Deep sloped bowl for buckets and floor cloths, drainer for items that must not sit in water.
Construction and Surface Finish

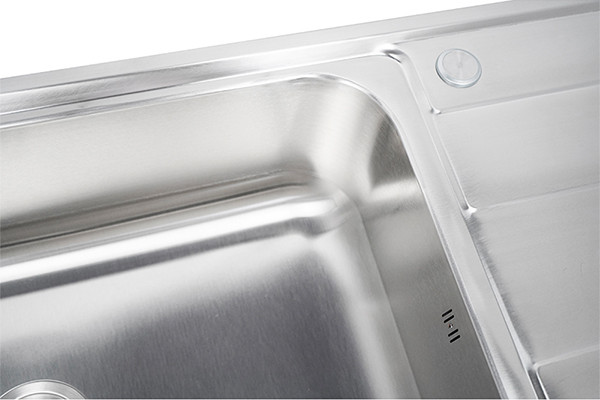

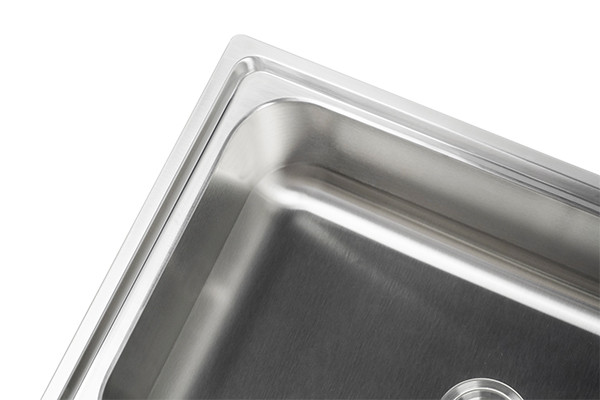

One pressed body: no seam where bowl meets drainerTerraced ribs guide water back to the bowlRounded inner corners: no sharp edge, easy rinseRolled rim adds stiffness along 1200 mmSloped base and sound pad on the bowl back
Satin
Standard. Fine linear grain hides handling marks and water spots, and is the finish most buyers choose for stock programmes.
Polished
Brighter, mirror-leaning surface for showroom and retail displays. Shows fingerprints faster, so it suits light-use settings best.
Electropolished
Passivated surface for food handling and coastal or high-humidity sites, where chloride pitting is the main long-term risk.
Drawings and Documents You Can Request
Specify from the drawing, not from a photo. Every SW1250 order is confirmed against a dimensioned drawing, and the same pack is available before you commit to a quantity.
2D dimension drawing in PDF, bowl and drainer fully dimensioned
Cutout and tap hole sheet marked up to your countertop layout
DXF file for kitchen CAD layouts
Material test certificate (MTC) and RoHS report
Loading plan for 20'GP, 40'HQ and mixed containers
What size is the SW1250 single bowl sink with drainboard?
The overall size is 1200 mm from right to left and 500 mm from front to back, with one bowl and a terraced drainer sharing the same pressed body. Bowl opening and cutout dimensions are confirmed on the production drawing for each order, so measure your countertop run against 1200 × 500 mm first and send us the layout for a marked-up cutout sheet.
Can I have the drainer on the left instead of the right?
Yes. The body is reversible: specify bowl-left with drainer-right, or drainer-left with bowl-right, and the tap hole is drilled to match after you confirm. Both layouts come from the same reference, so a mixed order does not need two SKUs. If your market asks for a right hand drainer sink by default, state it once on the order and we keep it on file.
Does it come with a backsplash?
No. The SW1250 has a flat deck with a rolled rim and a single tap hole, not a raised backsplash panel. If your project needs a splash guard against the wall, it is supplied as a separate stainless upstand, which also keeps the sink usable when it is fitted as a freestanding unit on legs.
Can it be used as a freestanding sink?
Yes, with the optional leg kit. The same sink that drops into a countertop cutout can be bolted to legs and used as a free standing stainless steel sink with drainboard for outdoor kitchens, garden wash points, market stalls and temporary sites. The legs are ordered with the sink, not retro-fitted, so the fixing points are prepared at the factory.
What waste outlet does it take, and is the waste included?
The bowl is pressed for a φ110 mm outlet, with φ160 mm available on request for faster emptying. The waste is not included by default: choose either the waste head on its own, or the complete set with the waste pipe. Tell us the outlet size when ordering, because the hole is formed in the same pressing run as the bowl.
Send the layout, get a cutout drawing back
Tell us the drainer side, the outlet size and the destination port. We reply with a dimensioned cutout drawing, the packing plan and a price for your quantity, normally within one working day.
