Stainless Steel Single Sink with Drainboard | Top Mount Deep Drawn Kitchen Sink
Stainless Steel Single Sink with Drainboard | Top Mount Deep Drawn Kitchen Sink
Model
DD406
Item specifics
Material
Stainless steel
Sink Type
Single bowl with integrated drainboard
Overall Size
880 × 460 mm (34.6" × 18.1")
Installation
Top mount / drop-in (inset)
Surface Finish
Satin; polished / electropolished optional
Drain Hole
φ110 / φ70 mm (optional)
Faucet Hole
1 hole on drainboard
Waste Kit
Optional
MOQ
500 pcs or above
Packing
8 pcs/carton or 8 pcs/bundle
Lead Time
30–40 days after deposit
OEM / ODM
Acceptable, custom logo and specification
Warranty
24 months on manufacturing defects
Review
Description
Single bowl sink with an integrated raised drainboard — drops into a standard top mount cut-out.
SINGLE BOWL SINK WITH INTEGRATED DRAINBOARD

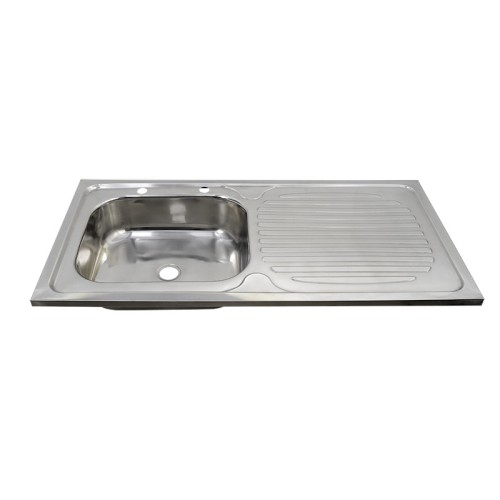

Stainless Steel Single Sink with Drainboard
A stainless steel single sink with drainboard built for volume buyers — one bowl and one raised, ribbed drainboard formed in a single deep-drawn pressing. The sink installs as a top mount kitchen sink with the drainboard on the right or the bowl on the right, and the drainboard carries the faucet hole so plumbing stays on one side. Overall size 880 × 460 mm, drain hole φ110 / φ70 mm, 500 pcs MOQ.
Overall size 880 × 460 mm (34.6" × 18.1")
One-piece drawn bowl + raised drainboard
Reversible: bowl-left / drainboard-right
Top mount (drop-in / inset) · optional undercoating
Four engineering decisions that matter to wholesalers, importers and kitchen projects — each written as feature, advantage and the benefit it delivers.
One-Piece Raised Drainboard
Feature: the drainboard is integrally stamped and raised, not welded on.
Advantage: one continuous pressing carries far more structural rigidity and resists pressure deformation.
Benefit: the drainboard doubles as a sturdy prep surface — no flexing, no weld cracks in daily use.

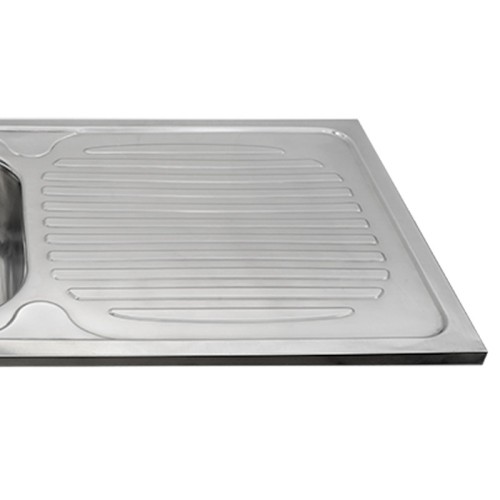

Ribbed Drainage, No Standing Water
Feature: optimised guide ribs channel runoff back into the bowl.
Advantage: water leaves the drainboard quickly instead of pooling along the edges.
Benefit: air-dried dishes and dry countertops, with far less dirt and scale build-up to scrub.
Faucet Hole on the Drainboard
Feature: 1 pre-drilled faucet hole sits in the drainboard, and the sink can be flipped.
Advantage: the same SKU delivers bowl-left / drainboard-right or drainboard-left / bowl-right.
Benefit: one model covers both layout demands, cutting the SKUs an importer has to stock.
Optional Sound-Dampening Pads
Feature: sound-deadening pads can be fitted to the back of the bowl, with an extra pad available for the drainboard.
Advantage: the pads absorb the impact of running water and clattering tableware.
Benefit: a noticeably quieter sink for open kitchens, guest-facing counters and shared wash areas.

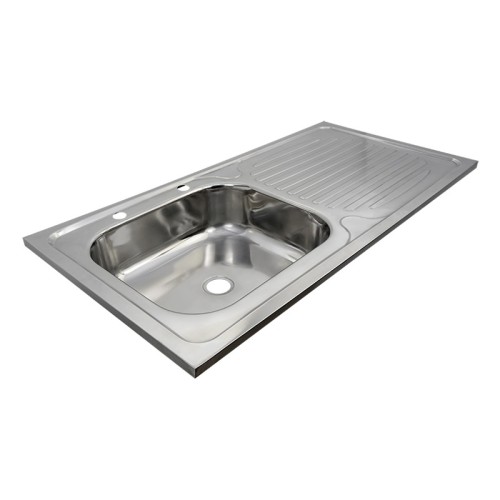

One-piece deep drawn body
Bowl and drainboard are formed in a single pressing — no welded seams to trap grease or leak.
Sloped bottom, optional undercoating
The bowl is sloped so water drains fully; an optional rear coating reduces condensation inside closed cabinets.
Sizes, Cut-Out & Layout
Plan the counter opening before you order. The plan view below marks the overall footprint of the sink together with the drain hole and faucet positions, so fabricators can set out the cut-out without rework.
Overall size: 880 × 460 mm (34.6" × 18.1")
Drain hole: φ110 / φ70 mm (optional on request)
Faucet hole: 1 hole, pre-drilled on the drainboard
Installation: Top mount (drop-in / inset), reversible left / right
Cut-out template, CAD file and the material certificate are supplied with the order — request the technical drawing and we will send the dimensioned PDF for your fabricator.
Samples available; sample cost and freight by buyer
Warranty
24 months on manufacturing defects only; non-transferable
Documents
Material certificate and RoHS report on request
Target markets
Southeast Asia, Middle East, South America, Africa
Packing & Container Loading
Two packing schemes so a container can be filled to the format your warehouse prefers.
Export carton — 8 pcs per carton. Each sink is tissue-paper wrapped and stacked in a 910 × 490 × 340 mm carton.Bundle packing — 8 pcs per bundle. Bundles are strapped and wrapped for a higher loading quantity per container.Mixed loading accepted. Cartons and bundles can be combined in one container to match your order mix.
40'HQ
3,120 pcs
390 cartons, or 6,456 pcs / 807 bundles
20'GP
1,152 pcs
144 cartons, or 2,480 pcs / 310 bundles
Per bundle
8 pcs
Tissue-paper wrapped and strapped
Optional Waste Kit
The drain assembly is supplied as an optional accessory (φ110 / φ70 mm), so importers can bundle the sink as a ready-to-install set or ship it bare. Faucet is not included.
Where This Drainboard Sink Fits
One footprint and four everyday settings — from a tight galley run to a covered backyard counter.

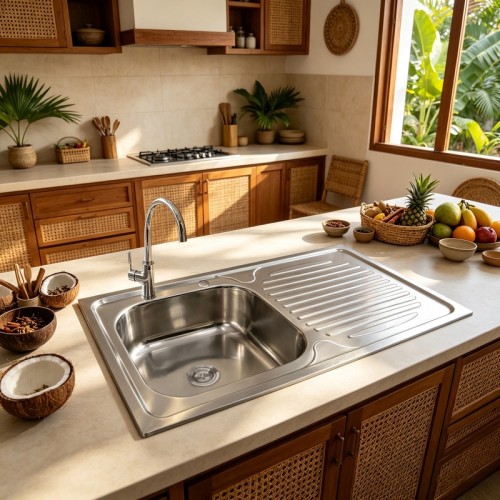

Compact home kitchen run. The long single footprint still leaves counter space beside it, and dishes air-dry straight over the drainboard.Tiled or stone countertop. The rolled rim seats cleanly on the cut-out edge, so a top mount kitchen sink install needs no special stone work.Covered outdoor kitchen. A deep drawn body with the optional rear coating copes with humidity and temperature swings under a roof.Shared wash area. A single, wide bowl handles pots and trays, while the drainboard keeps wet items off the counter in busy communal spaces.
Construction & Surface Finish
The rim, the pressing and the finish are the three things that decide how a drawn sink ages.
Rolled Rim, One-Piece Pressing
Rolled rim: the sink edge is folded over, stiffening the whole body and letting the unit sit tight on the countertop after installation.
Smooth inner corners: rounded R corners mean no sharp edges to catch a cloth — quicker to clean, safer for hands.
No welded seam: bowl and drainboard share one pressing, so there is no joint for grease or water to creep into.
Satin / brushed
Standard finish — hides fingerprints and day-to-day scuffs, and is the easiest to keep looking uniform.
Electropolished
Optional ECP brightens the surface and smooths micro-peaks, so residue rinses off more easily.
Mirror polish
Optional high-gloss polish for retail-facing displays. Ask for a sample before specifying.
Installation Guide & Technical Documents
Download the technical sheet before you cut the counter: it carries the dimensioned front and side views, the cut-out diagram and the cabinet section views for this top mount sink.
Dimensioned drawing — front / side view and cut-out diagram (PDF)
Cabinet dimensions and section views
Material certificate (MTC) and RoHS report
Packing specification and container loading plan
Need the step-by-step fitting instructions or the CAD file? Ask for the full document pack and we will send it with the quotation.
What is the overall size of this stainless steel single sink with drainboard?
The sink measures 880 × 460 mm (34.6" × 18.1") including the integrated drainboard. Send us your counter run and we will confirm the counter opening and the clearance you need behind the sink.
Can the sink be installed with the bowl on the left, or the drainboard on the left?
Both. The body is symmetrical enough to be turned round, so one model covers bowl-left / drainboard-right and drainboard-left / bowl-right. Tell us which layout you sell most and we will set the faucet hole position accordingly.
Does the drainboard come with a faucet hole?
Yes — there is one pre-drilled faucet hole on the drainboard, which keeps the tap, plumbing and the drying area on the same side of the bowl. There is no tap ledge and no soap-dispenser hole.
What drain hole size does the sink use?
The drain hole is φ110 / φ70 mm, offered as an option so you can standardise on the waste kit already stocked in your market. The matching waste kit is available as an optional accessory.
What is the MOQ, lead time and packing for this drainboard sink?
MOQ is 500 pcs or above, lead time is 30–40 days after deposit. It ships 8 pcs per carton or 8 pcs per bundle, giving 3,120 pcs in a 40'HQ as cartons or 6,456 pcs as bundles. OEM / ODM with custom logo and specification is accepted.
Get a Quote on This Drainboard Sink
Tell us the quantity, the layout you need (bowl-left or drainboard-left), the drain hole size and the destination port. We will come back with pricing, lead time, packing options and the installation guide within 24 hours.
